Slab Lifter

The unit has an adjustable bail that permits level lifting of the slabs due to multiple combinations of dimensions that it is required to lift.

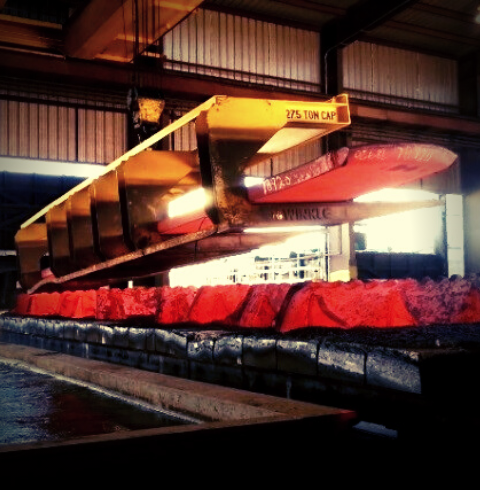

The lifter lowers into place on one side of the slab where the crane raises until the legs of the device engage the edge of the slab. The crane then lifts the slab and travels to the tank where it submerges both the lifter and slab. After quenching, the apparatus is raised and the slab is placed onto a cooling table.

All Winkle lifters are engineered and manufactured in full compliance with ASME B30.20, BTH-1 safety and design standards.
